1. Precast Concrete Pier Foundation

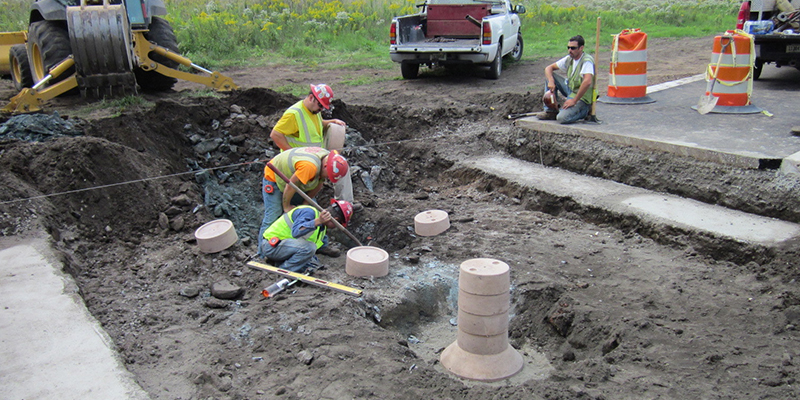

The steps below show a typical concrete boardwalk construction process using precast concrete piers, supplied by PermaTrak. Depending on the soil conditions and layout of the project, PermaTrak's precast concrete piers can serve as a low-impact, cost-competitive foundation option. Piers consist of three stackable components: bases, risers, and caps. Excessive excavation of the project site is eliminated, providing owners with a boardwalk foundation suitable for minimal tree root disturbance.

describe the image

1. The PermaTrak system is manufactured by local precasters throughout the country. We own and maintain these steel production forms to ensure consistent quality control.

describe the image

2. The boardwalk's beginning and ending stations typically utilize our precast abutment piece, on a bed of granular stone or an unreinforced concrete "mud mat." Lift inserts allow for easy handling.

describe the image

3. The base component of our concrete pier foundation option spreads the load to the sub grade. Weighing around 100 lbs. each, bases can be maneuvered by hand into position.

describe the image

4. "Riser" components can be stacked for elevation changes, without any hardware required. Lifting inserts allow contractors to easily move these pieces around by hand (~80 lbs. each).

describe the image

5. "Cap" components transfer the load from the precast beams to the pier. The dimples on the top of the caps accept the spherical polyurethane pins. This pier is installed on a compacted granular base.

describe the image

6. Polyurethane "mushroom" pins connect the precast beams to the foundation elements. "Barrel" pins eliminate lateral movement while "H-Connectors" secure the boardwalk for floodplains/storm surge areas.

describe the image

7. Precast concrete beams span from cap to cap. Spherical mushroom-shaped pins fit into formed slots in the bottom of the beams. A 1/8'' rubber bearing pad strip is laid on the beams to eliminate any uneven bearing.

describe the image

8. Curved alignments are easily accomodated by adjusting the beam lengths of the inside and outside runs.



describe the image

9. Precast treads are easily maneuvered into place with small construction equipment such as a Bobcat with slings.



spud bar for treads

10. Spud bars allow laborers to adjust the treads' final position on the precast beams.

gap spacing

11. Tread installation continues while consistent 1/8'' joint spacing and boardwalk alignment is periodically checked for accuracy.



tapered treads

12. Curved alignments are formed by use of tapered tread pieces.



steel curb

13. Steel curbs are a nice option for a low-lying boardwalk. We are able to work with a variety of bolt patterns to provide a clean, finished look.

 concrete curb

14. Concrete curbs are also popular choices as an add-on feature. Connecting hardware is hidden from view and curbs attach without any field drilling.

 timber post bracket

15. PermaTrak's steel brackets can be manufactured with a powder-coating, galvanized, or stainless steel finish. A 4'' x 4'' post upright fits into the bracket to allow for a variety of timber railing designs. Bolts are threaded through the boardwalk's tread gaps and connect to a bottom plate on the underside of the walking surface.

timber railing

16. Railing options with the PermaTrak boardwalk system span a wide range. The least expensive material is typically a variation of timber: Cedar, Southern Yellow Pine, Redwood, etc.

 aluminum railing

17. Aluminum railings can also be supplied as part of a completely seamless, engineered and manufactured boardwalk system.

 steel railing

18. A custom, stainless steel railing is one of the more expensive options to complete a boardwalk project. Railing options are limited only by the creativity of the designer and end user. Although a one-sided railing may fall into the "overly-creative" category!
