PermaTrak Project Profiles: Concrete Boardwalks and Pedestrian Bridges

  • flat-branch-nature-preserve-1.jpg
  • flat-branch-nature-preserve-2.jpg
  • flat-branch-nature-preserve-3.jpg
  • flat-branch-nature-preserve-4.jpg
  • flat-branch-nature-preserve-5.jpg
  • flat-branch-nature-preserve-6.jpg
  • flat-branch-nature-preserve-7.jpg
  • flat-branch-nature-preserve-8.jpg
Project Profile

Flat Branch Nature Preserve

Challenge

Mecklenburg County was looking for a boardwalk solution for Flat Branch Nature Preserve, one of the largest upland depression swamp forests remaining in the county. As these delicate wetlands are critical for the local ecosystem- namely, amphibian breeding, the boardwalk needed to sit above the ground and not penetrate it while also preserving tree root systems.

Installing the boardwalk in such a sensitive environment was also a point of concern for Mecklenburg County’s project managers.

Solution

After analyzing the long-term cost savings of a concrete product, Mecklenburg County decided on a PermaTrak boardwalk system.

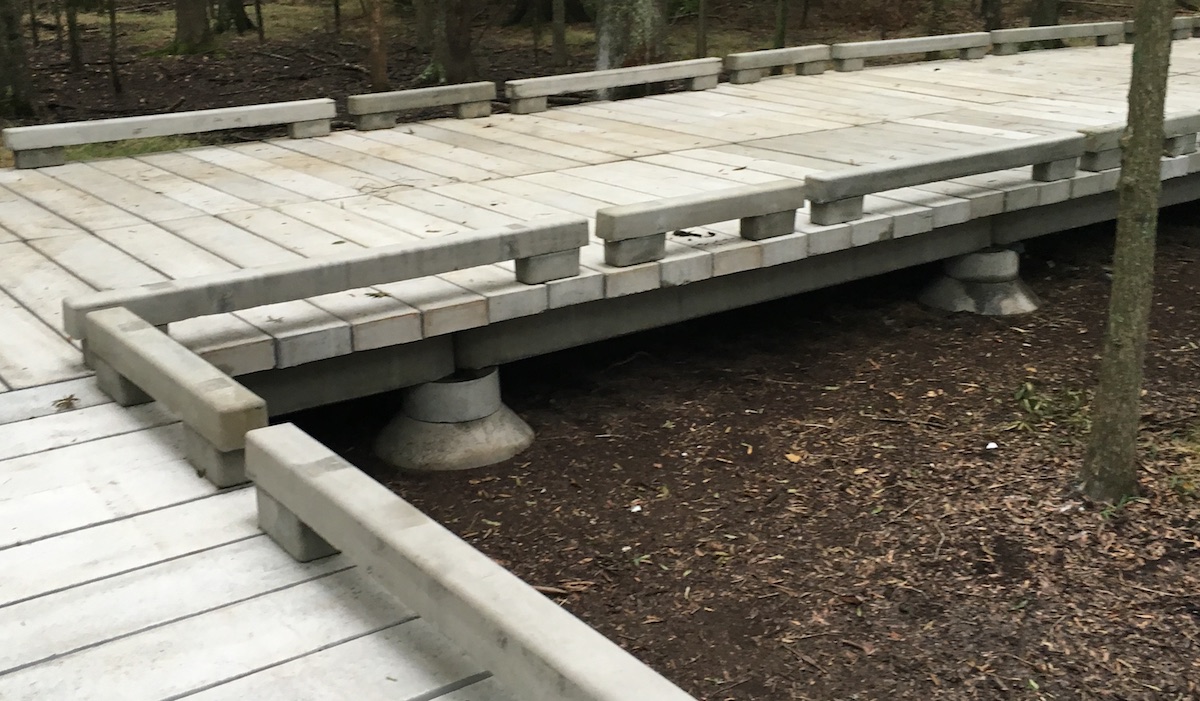

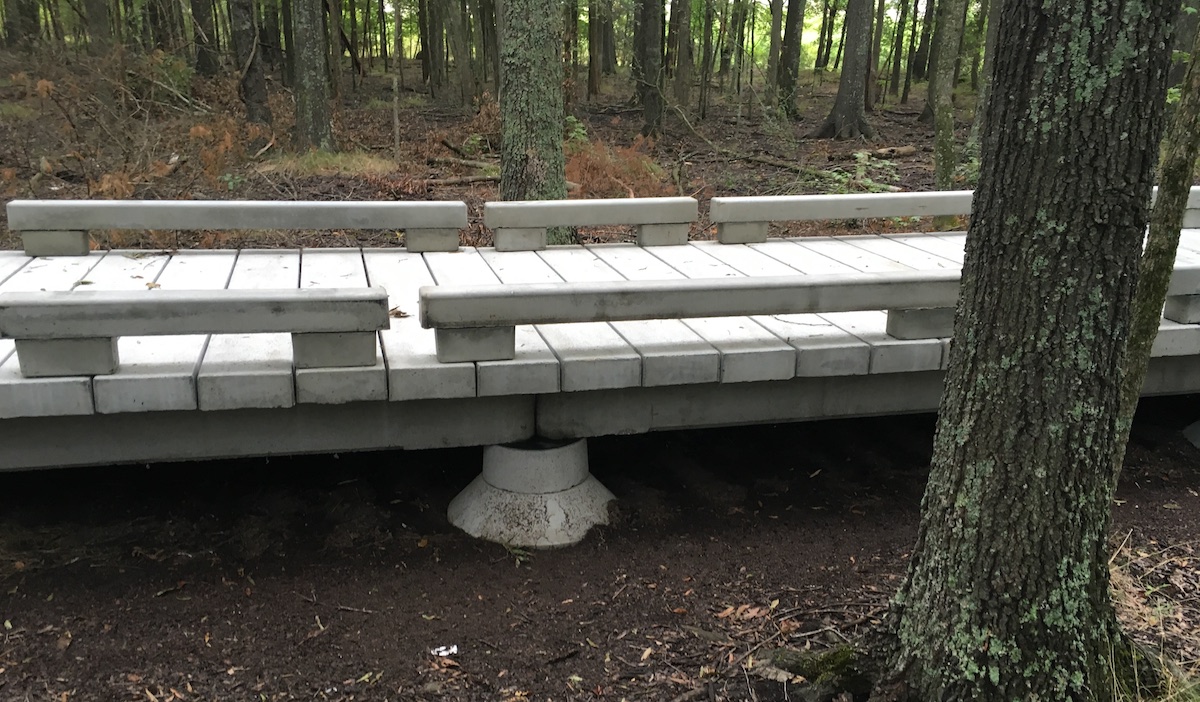

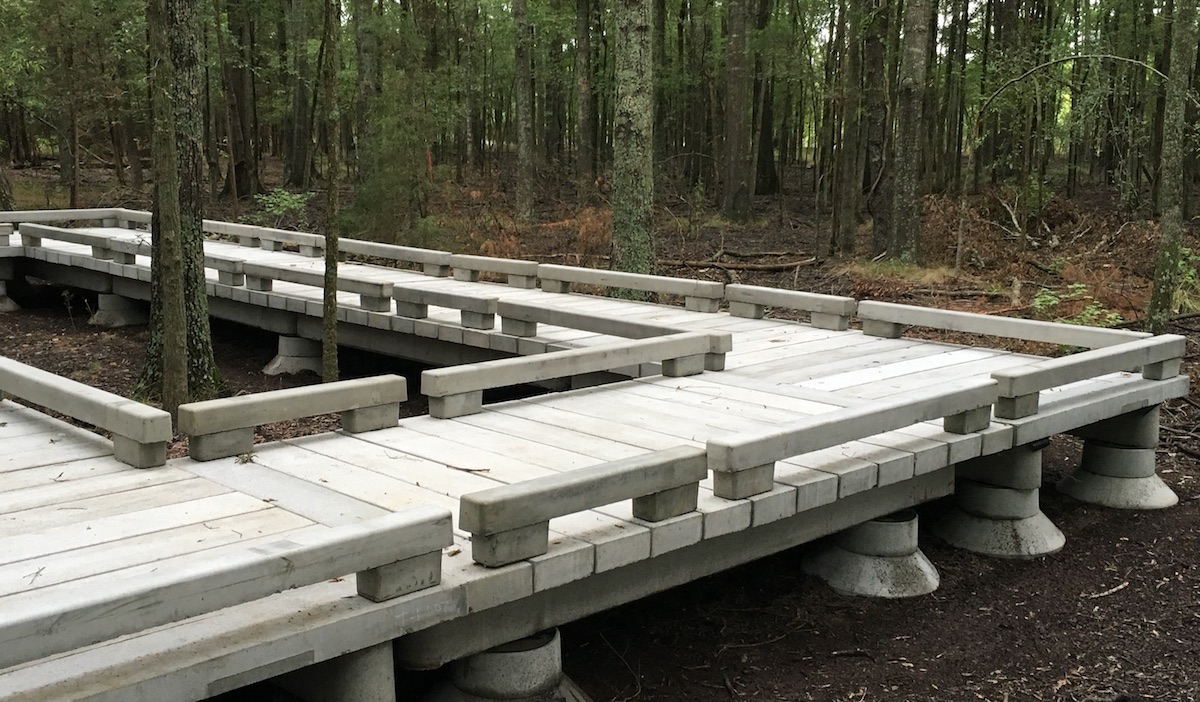

After setting the PermaTrak pier footings in place by hand, the installing contractor minimized tree and wetland surface disturbance through a top down construction method. PermaTrak’s modular boardwalk system allows for the system to flex with the seasonal ground movement.

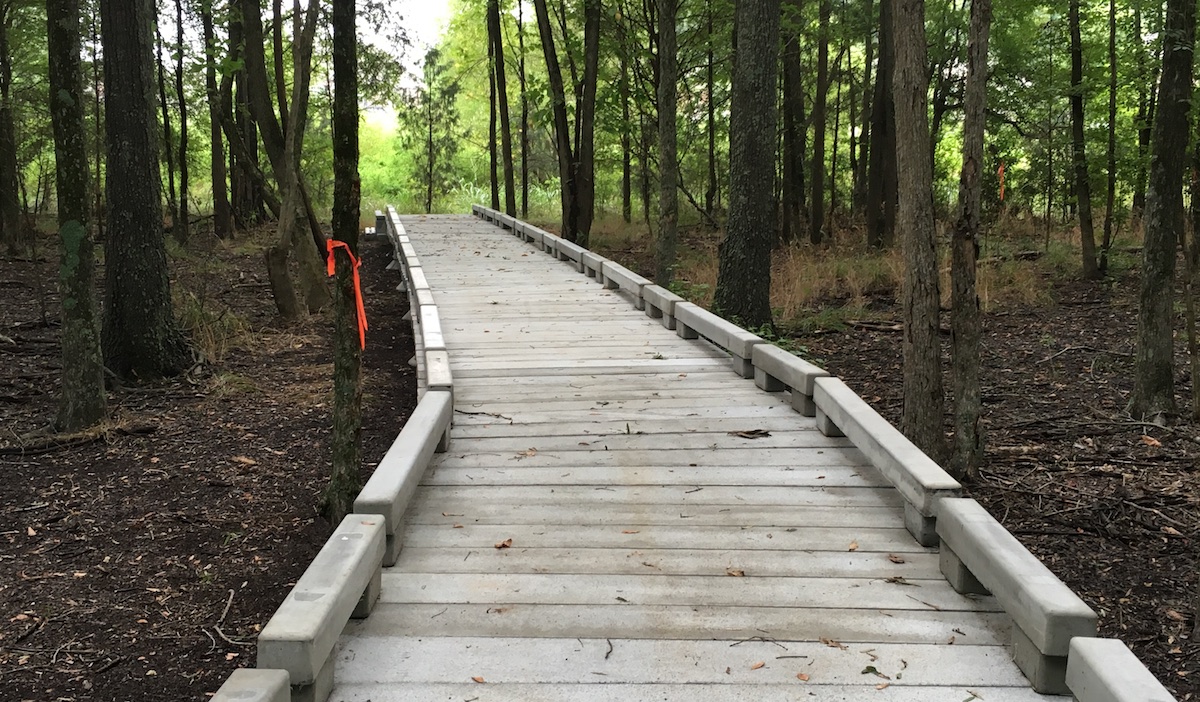

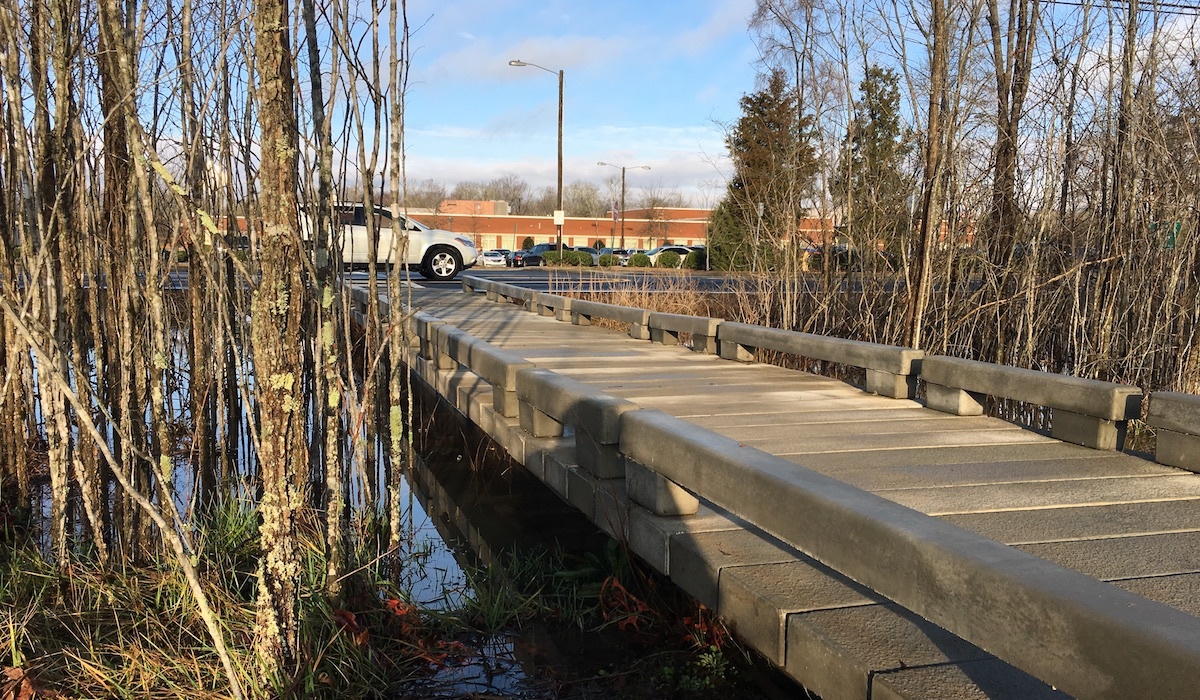

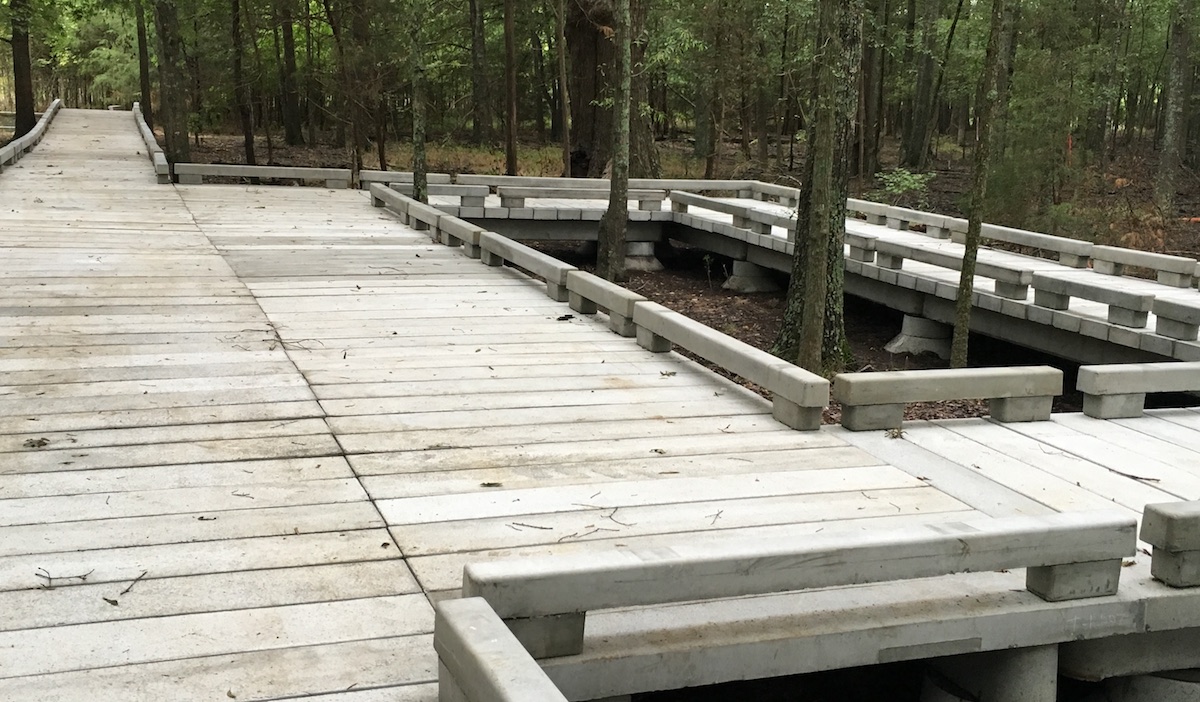

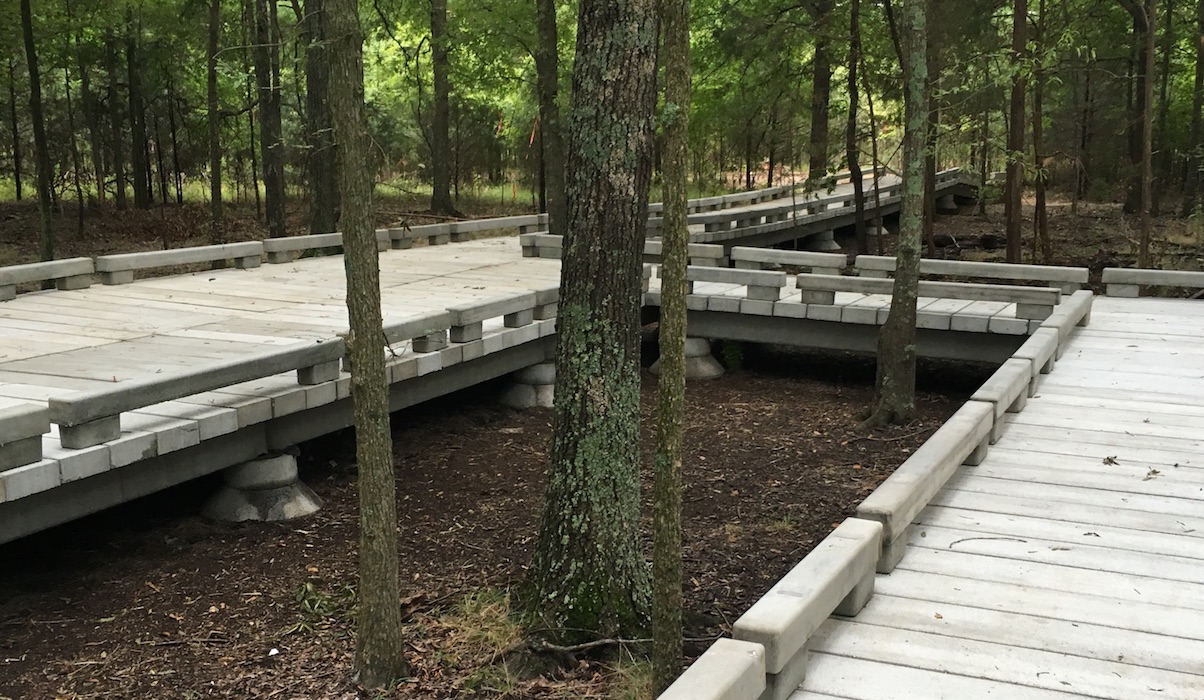

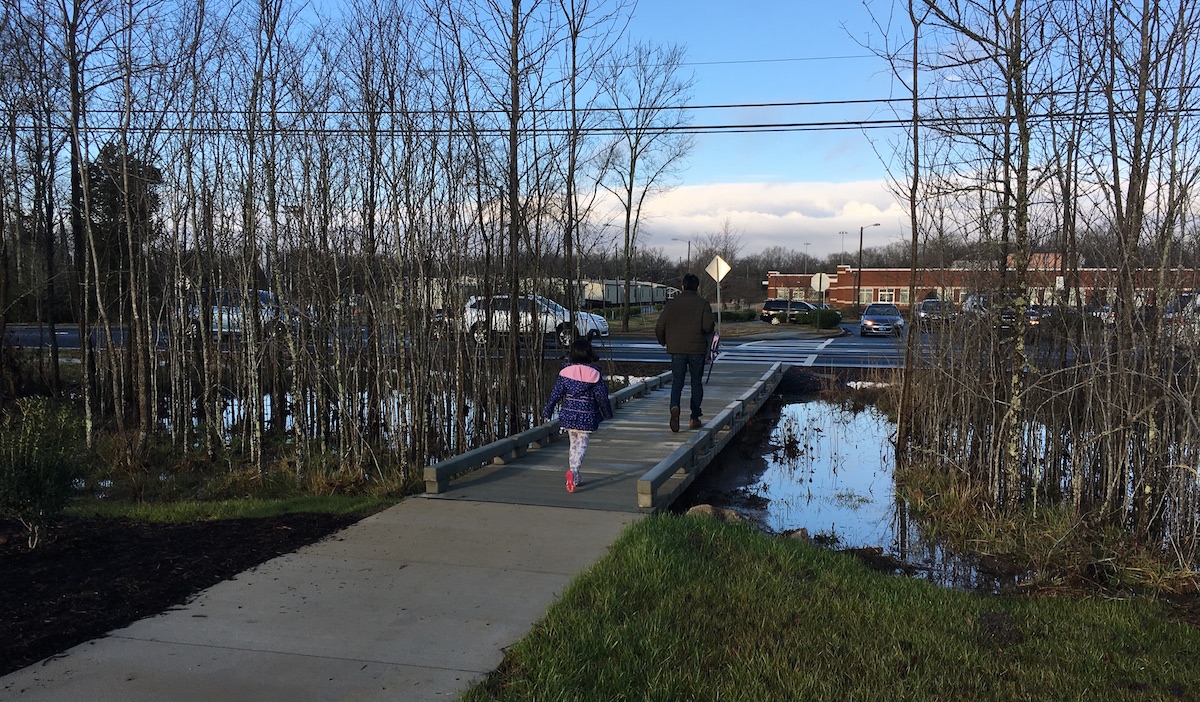

Two boardwalk segments now create a walkway through the heavily wooded areas. The project also includes a unique outlook/observation deck that will be used as an outdoor classroom for local elementary school students.

Location: Charlotte, NC
Owner: Nature Preserves and Natural Resources, Mecklenburg County
Owner: Henson Foley
Owner: TG&R Landscape Group

Technical Description

Boardwalk Length(s): 323 ft. & 24 ft.
Tread Width(s): 6 ft. 0 in.
Color: Natural Concrete
Texture: Sandblast
Installation Date: November 2015
