For boardwalk applications that require a shallow structure depth due to limited grade separation from walking surface to finished grade, PermaTrak has developed the Low Profile Series, an innovative design that offers an efficient section with similar structural integrity as a more traditional precast concrete boardwalk.

This complete precast bridge option can be installed as a “bridge in a day” with lower material cost and faster installation time.



Download our Low Profile Series info sheet



How does it work?

Low Profile Series treads are laid in line with the trail and beams act like an abutment beneath the treads, allowing the boardwalk to lie flat with the surrounding trail.

The Low Profile Series is a great fit for projects with shorter span lengths, narrow widths, and low elevations. The traditional PermaTrak options such as color, texture, railing and curb edge treatments are available for the Low Profile Series, however there is a limitation to matching required trail alignment.

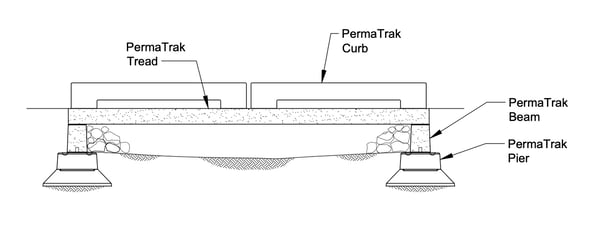

low-profile-series-diagram

Benefits:

  • Reduced structure depth and walking surface height
  • Provides maximum hydraulic waterway openings for span to rise ratios
  • Lower material cost/faster installation
  • Designed for live loads up to H-15 and can be engineered for construction equipment
  • May eliminate the need for railing

Common applications:

  • Shallow grade separations
  • Over tree roots
  • Swale crossings
  • Temporary bridge crossings

Which PermaTrak system is the best fit for your project?

Feature

Low Profile Series Traditional PermaTrak Concrete Boardwalk
Spans bigger than 15'
Curvilinear alignment
Color selection
Texture selection
Rail/curb treatment
Drop height less than 15”
Live load capabilities
No maintenance required
Top down construction capabilities


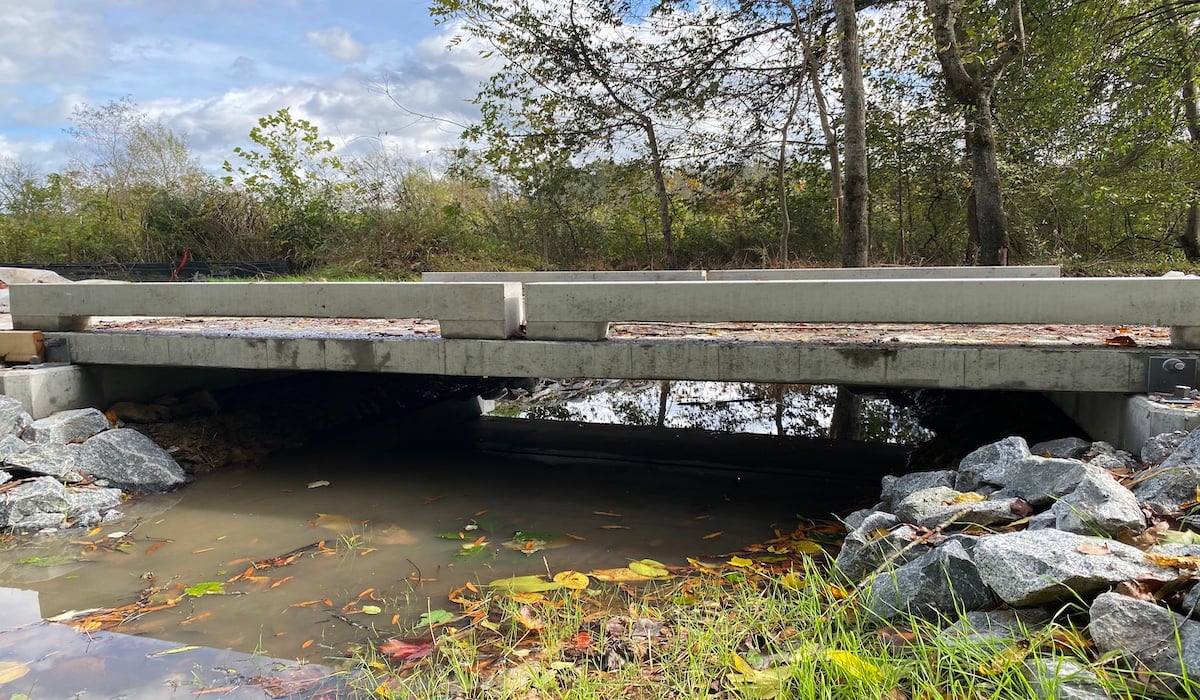

Photo Gallery

This product is covered by Patent #5906084 and other Patents Pending. Updated December 2020
