PermaTrak Boardwalk Construction on Helical Piles

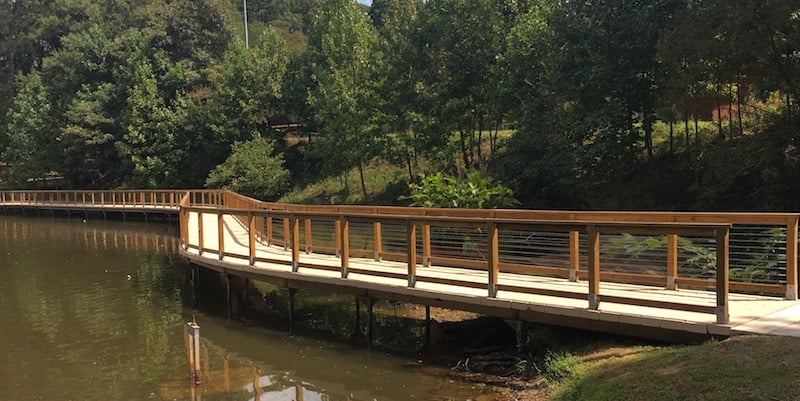

PermaTrak on Helical Pile Foundationhelical pile boardwalk foundation option.png

Helical piles, sometimes referred to as screw piles, can make for a durable and environmentally friendly boardwalk foundation. As a pre-engineered foundation system, helical piles require small installation equipment and can be easily modified in the field.

Helical piles may be a good foundation solution for project sites with:

  • restricted access
  • high water table
  • limited vertical head room, or
  • weak surface soils

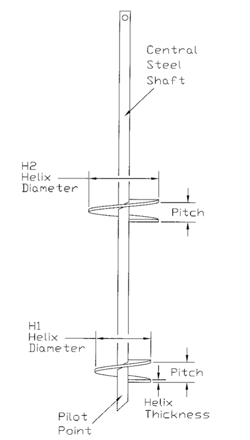

They consist of one or more helix plates attached to a central steel shaft.

With a PermaTrak's concrete boardwalk system installed on a helical pile foundation system, owners can benefit from a very durable, maintenance-free structure overall.

Once a pile is installed to the specified capacity, a steel plate is secured to each pile, setting the template for the rest of the PermaTrak boardwalk construction process.

production_plant_hand_trowel_step_1

1. The PermaTrak concrete boardwalk system is manufactured by local precasters throughout the country. We own and maintain these steel production forms to ensure consistent quality control.

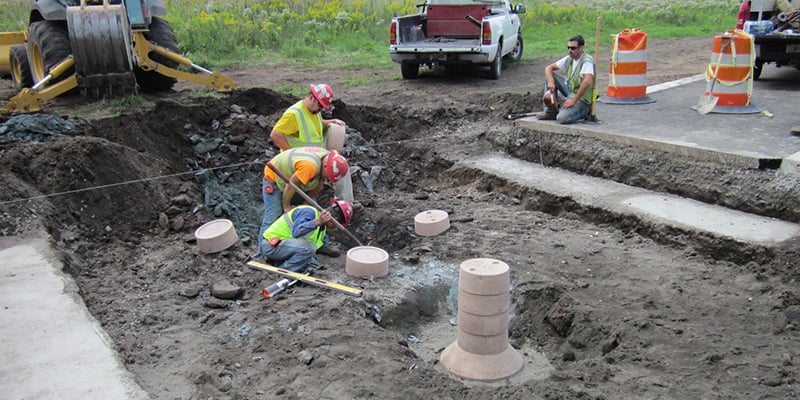

abutment on mud mat

2. The boardwalk's beginning and ending stations typically utilize our precast abutment piece, on an unreinforced concrete leveling pad. Lift inserts allow for easy handling.

helical pile boardwalk installation example permatrak.png

3. Steel helical piles are installed or "screwed" into soil to a specified torque.

helical pile with cap plate boardwalk construction-1.jpg

4. A steel cap plate with gusset supports is attached to the top of the helical pile.

Helical pier - plan view1.jpg

5. In plan view, the helical pile foundations with attached steel cap plates set the template for the PermaTrak beams and treads to be installed.

helical pile with permatrak beams installation-1.png

6. PermaTrak concrete beams sit directly on helical steel cap plate.

permatrak boardwalk installation on helical pile foundation.jpeg

7. Reinforced, precast concrete beams span from helical pile to helical pile.

boardwalk_installation_rubber_bearing_pad_install_-250

8. A 1/8'' rubber bearing pad strip is laid on the beams to eliminate any potential uneven bearing (picture shown with different foundation type).





concrete boardwalk curved beams

9. Curved alignments are easily accomodated by adjusting the beam lengths of the inside and outside runs (picture shown with different foundation type).

permatrak boardwalk installation

10. Precast treads are easily maneuvered into place with small construction equipment. Spud bars or crow bars used from underneath the boardwalk allow installers to adjust the treads' final position on the precast beams without damaging the finished walking surface.

concrete boardwalk tread install

11. Tread installation continues while consistent 1/8'' joint spacing and boardwalk alignment is checked for accuracy.

curved boardwalk treads installation

12. Curved alignments are formed by use of tapered boardwalk tread components. See our Engineering Layouts page for more information on horizontal alignment and minimum radii.

concrete_boardwalk_curbs

13. Precast concrete curbs (supplied by PermaTrak) are also popular choices as an add-on feature. Connecting hardware is hidden from view and curbs attach without any field drilling.

Boardwalk Construction galvanized bracket permatrak install page.jpg

14. PermaTrak's steel brackets are manufactured with a  galvanized steel finish. A 4'' x 4'' timber post fits into the bracket to allow for a variety of timber railing designs. Bolts connect to a bottom plate on the underside of the walking surface.

timber_railing_steel_grab_rail_permatrak

15. Railing options with the PermaTrak boardwalk system span a wide range. This timber railing has a steel grab rail to meet ADA requirements. See Railings for pricing and design information.

Aluminum_Picket_Style_Railing

16. Aluminum railings can also be supplied as a cost-efficient boardwalk railing. See "What Types of Railings Does PermaTrak Offer?" for more information.

stainless_steel_tensioned_cable_strands_chincoteague_2

17. A stainless steel railing with cable strands offers a transparent look, but is one of the more expensive options to complete a boardwalk project.
